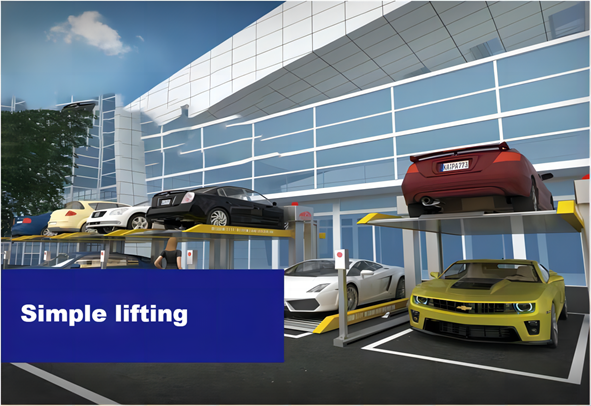

The simple lifting parking equipment uses a motor to drive the chain to drive the car platform up and down to achieve vehicle storage and retrieval. The structure is simple and safe, the installation speed is fast, the operation is easy, and the cost is low.
When taking the upper vehicle, the lower vehicle needs to be driven out first. 2 to 4 parking spaces can be achieved on the basis of a single traditional parking space.
The equipment can be relocated and used repeatedly, and the relocation and installation are convenient and fast.
Features
1. The equipment occupies a small area, making full use of the underground space, with better space utilization, and the number of rows can be reasonably arranged according to customer requirements.
2. The equipment cost is low, and the maintenance cost is low, which is a more economical choice.
3. Smooth operation, low noise, and convenient storage and retrieval of vehicles.
4. Anti-fall, anti-personnel and vehicle accidental entry, vehicle over-length alarm, undervoltage and phase loss, overcurrent, power-off self-locking.

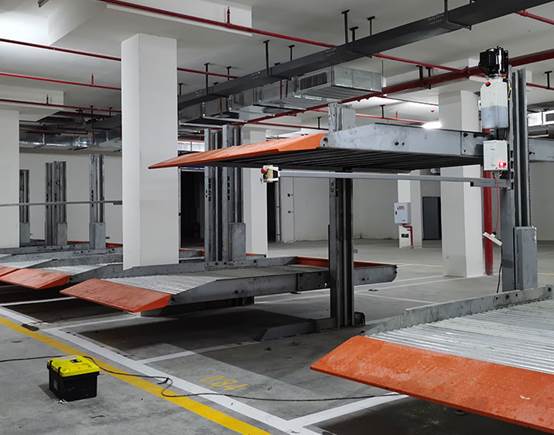

Detail

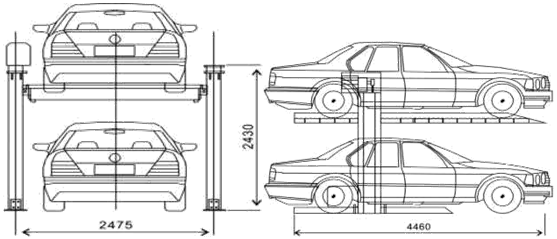

Structure
diagram
|
Product |
Two-layer lifting and sliding type |
Model |
Pit type |
Garage layers |
2 |
|
Floor area |
Depends on the partition |
Average cartaking time |
60S |
Number of entrances and exits |
Depends on the partition |
|
Vehicle Dimension |
5000 (L)*1850(W)*1550 (H)mm / 5300 (L)*1900 (W)*1550(H)mm |
Vehicle weight |
2000KG/2350KG |
||
|
Clear height under beam |
W3650mm |
Parking space |
5 |
Pickup Directions |
Reverse into the garage, forward into the garage |
|
Drive method |
Motor chain drive |
Power capacity |
Three-phase AC 380V 50Hz |
Operation mode |
Digital key operation |
|
Motor |
Motor (lift) |
3. 7kw |
Action time (50Hz) |
Lift speed |
3.8m/min |
|
Motor (transverse) |
0. 2kw |
Transitional speed |
7.6m/min |
||
