The lifting and horizontal moving parking equipment is divided into multiple layers and multiple rows. Except for the top layer, there is an empty space on each layer. All parking spaces except the bottom layer can be lifted and lowered automatically, and all parking spaces except the top layer can be transversely shifted automatically. When a parking space needs to be accessed, all parking spaces below the parking space and between the empty parking space and the empty parking space will be transversely shifted to the empty space by a distance of one parking space, forming a lifting channel under the parking space. At this time, the parking space can be lifted and lowered freely, and when it is lowered to the ground, the vehicle can drive in or out.
Features
1. Flexible structure, optimal layout can be made according to user requirements and site conditions;
2. Packaging forms such as full packaging, semi-packaging, simple packaging and no packaging can be designed according to user requirements;
3. High space utilization, suitable for sites with large floor space but height restrictions.
4. Low equipment cost and maintenance cost;
5. Smooth operation, low noise, convenient storage and retrieval:
Detail

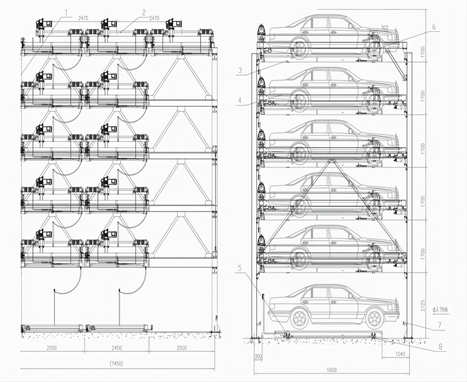

Structure
diagram
|
Product |

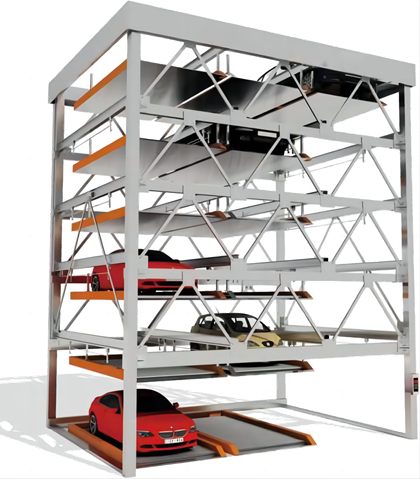

Six-layer lifting traversing parking equipment |
Model |
PSH-13 |
Garage floors |
6 |
|
Floor area |
Depends on the partition |
Average cartaking time |
85S |
Number of entrances and exits |
Depends on the partition |
|
Vehicle Dimension |
5000 (L)*1850(W)*1550 (H)mm / 5300 (L)*1900 (W)*1550(H)mm |
Vehicle weight |
2000KG/2350KG |
||
|
Clear height under beam |
W8900mm |
Parking space |
13 |
Pickup Directions |
Reverse into the garage, forward into the garage |
|
Drive method |
Motor chain drive |
Power capacity |
Three-phase AC 380V 50Hz |
Operation mode |
Digital key operation |
|
Motor |
Motor (lift) |
3. 7kw |
Action time (50Hz) |
Lift speed |
4. 2/6.2m/min |
|
Motor (transverse) |
0. 2kw |
Transitional speed |
7.6m/min |
||
