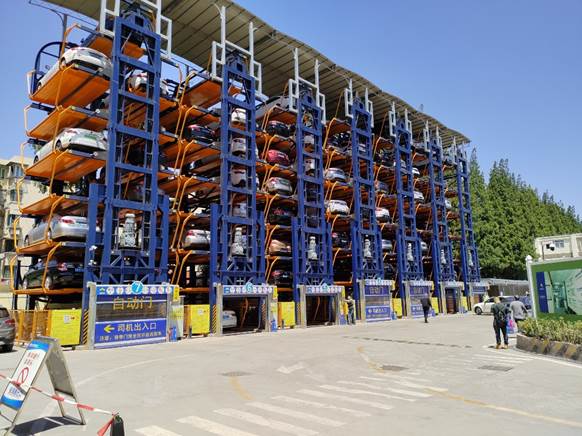

• Vertical Rotary Parking System uses the motor to drive the transmission mechanism through the reducer. A storage bracket is installed at regular intervals on the driving chain. When the motor starts, the bracket will move together with the chain in the way of vertical rotation.
• To store a car, just park it on the bottom layer and press the “store” button. Then the motor starts and brings parked car away until another free bracket gets to the bottom(car entrance) .
• To pick up a car, press the parking number button on the bottom layer. The motor will start. And under the guidance of the controller, the bracket will run to the exit in the shortest distance. The driver can then enter the tray and pick up his car.
Features
1. Small footprint, effective use of land space; suitable for narrow sites with no height restrictions.
2. Simple operation, fully automatic computer control;
3. The equipment has a single power source, and the vehicle can be stored and retrieved in one transfer;
4. It can be set up independently or attached to a building. Flexible layout.
Detail

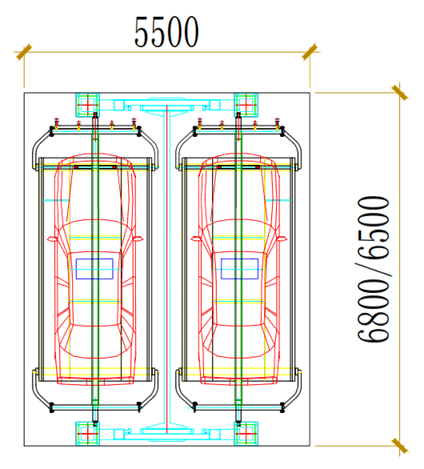

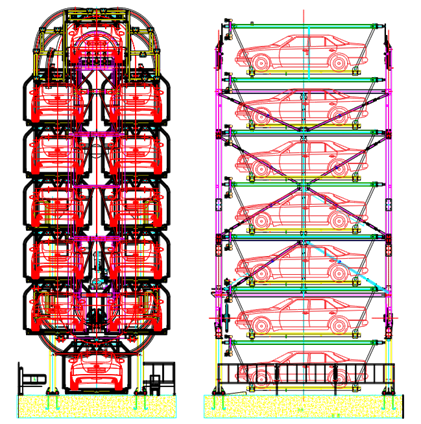

(Take the 12-parking system for example)

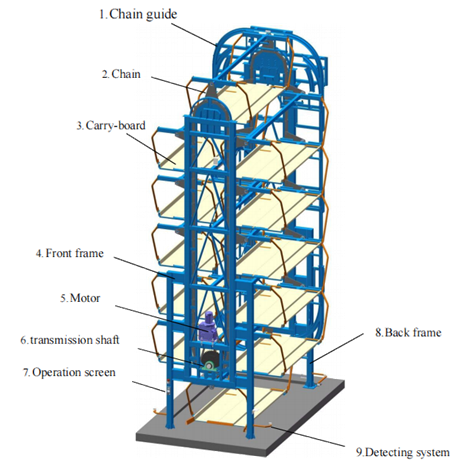

Structure
diagram
Basic Parameters for Main Parking Systems
|
Vertical Rotary Parking System(Sedan Cars) |
||||||
|
Type |
7 layers |
8 layers |
9 layers |
10 layers |
11 layers |
|
|
Number of parking |
12 |
14 |
16 |
18 |
20 |
|
|
Dimension |
Length |
5300mm |
5000mm |
5000mm |
5300mm |
5300mm |
|
Width |
2000mm |
1950mm |
2000mm |
1900mm |
1900mm |
|
|
Height |
1550mm |
|||||
|
Weight |
≤1850kg |
|||||
|
Geared Motor |
11kw |
15kw |
18.5kw |
22kw |
22kw(SIEMENS Motor) |
|
|
Drive Cycle Speed |
6.5m/min |
|||||
|
Max. Cartaking Time |
≤125s |
≤140s |
≤165S |
≤200S |
≤200S |
|
|
Driving Mode |
Motor driven, chain rotation |
|||||
|
Operation method |
Button/IC card/Touch Screen |
|||||
|
Power |
380V/50Hz |
|||||
|
Vertical Rotary Parking System(SUV) |
|||||
|
Type |
7 layers |
8 layers |
9 layers |
10 layers |
|
|
Number of parking |
12 |
14 |
16 |
18 |
|
|
Dimension |
Length |
5300mm |
5000mm |
50000mm |
5300mm |
|
Width |
2000mm |
1900mm |
2000mm |
1900mm |
|
|
Height |
2000mm |
||||
|
Weight |
≤ 2250kg |
||||
|
Geared Motor |
15kw |
18.5kw |
22KW/30KW |
22KW/30KW |
|
|
Drive Cycle Speed |
6.5m/min |
||||
|
Max. Cartaking Time |
≤155s |
≤160s |
≤200S |
≤200S |
|
|
Driving Mode |
Motor driven, chain rotation |
||||
|
Operation method |
Button/IC card/Touch Screen |
||||
|
Power |
380V/50Hz |
||||
